1725656
Manufacturer:
Phoenix Contact
Mfr.Part #:
1725656
Datasheet:
Description:

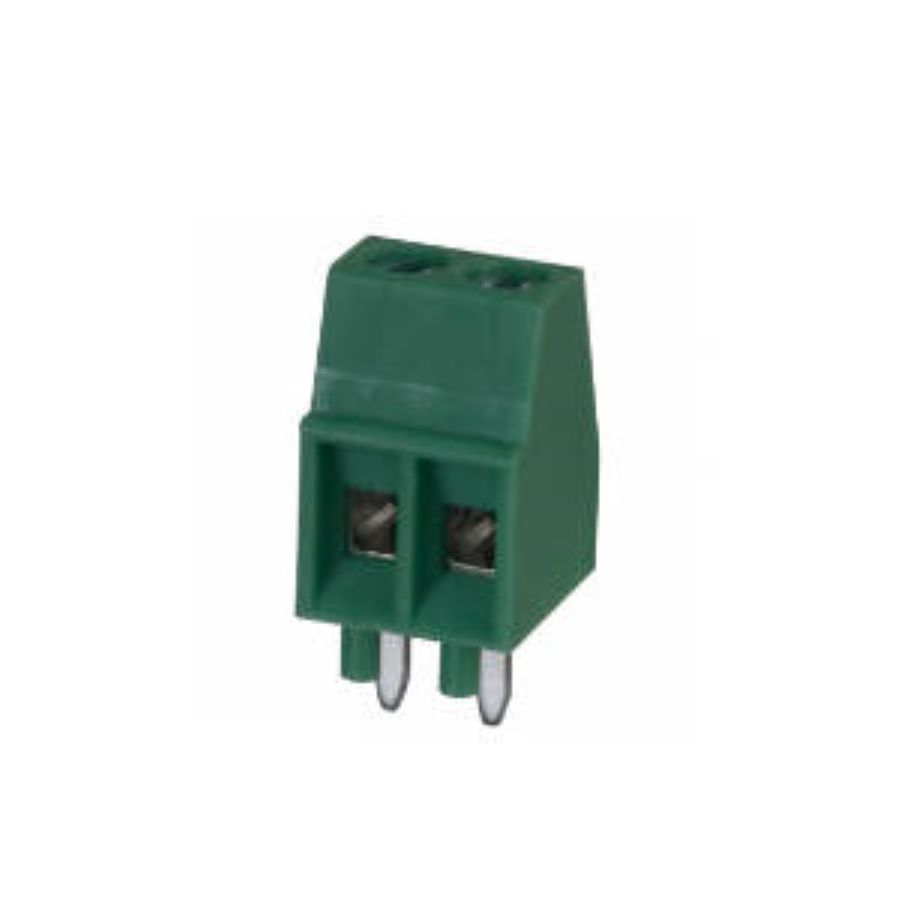

Terminal Blocks PCB Mount 2 2.54 mm 6 A 125 V 30 AWG to 20 AWG
| Parameter | Value |
|---|---|
| Length | 5.54 mm |
| Width | 12 mm |
| Termination | Screw |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 63 V |
| Number of Pins | 2 |
| Height | 6.2 mm |
| Packaging | Bulk |
| Voltage Rating | 125 V |
| Depth | 6.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Voltage | 125 V |
| REACH SVHC | No SVHC |
| Weight | 639.990485 mg |
| Contact Material(Contact Finish) | Tin |
| Pitch | 2.54 mm |
| Current | 6 A |
| Current Rating | 6 A |
| Max Current Rating | 6 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL, cULus |
| Number of Circuits | 2 |
| Orientation | Straight |
| Max Supply Voltage | 63 V |
| Color | Green |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Connector Type | PCB, Screw, Terminal Block |
| Wire/Cable Gauge | 26 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 26 AWG |
| Wire Gauge (Min) | 20 AWG |
| Housing Color | Green |
| Stripping Length | 4.5 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 20 AWG |
Stock: 12227
Distributors
pcbx
pcbxUnit Price$1.20749
Ext.Price$1.20749
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20749 | $1.20749 |
| 10 | $0.86280 | $8.62800 |
| 25 | $0.79689 | $19.92225 |
| 50 | $0.71179 | $35.58950 |
